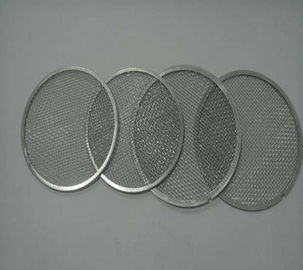

Name: Multilayer extruder screen packs with spot welded or frame edges/filter disc mesh
Brand: HEBEI CHANGRONG METAL PRODUCTS CO.,LIMITED
SKU: XM-1
Price: Negotiable USD
Availability: InStock

Home Products stainless steel filter disc mesh

Multilayer extruder screen packs with spot welded or frame edges/filter disc mesh

Product Details:

Place of Origin:	china
Brand Name:	XM
Certification:	ISO9001
Model Number:	XM-1

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	1usd-15usd
Packaging Details:	carton box or according to customer request
Delivery Time:	within 7days from we got the payment advance
Supply Ability:	10000/month

Contact Now

Detailed Product Description

Materual: 304,304L.316,316L:	Mesh Count: 1-635mesh	0.025-1.8mm, 0.025-1.8mm:	Weave Technique: Plain Weave, Twill Weave
Layer:single,double,multilayer.:	Disc Diameter: From 5mm To 600mm

Stainless Steelt filter pieces

Filter discs are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.
It is also can be used for the filtration of air, the medium cleaning and flow control of lubrication oil, fuel oil, hydraulic pressure and air pressure system.
Any outline size and filtration rating available as the requirements of the customer.

Material:SS304,SS316.SS316L,SUS304.SUS316.SUS316L
Woven types :Plain woven.Dutch woven.
Bound edge width :1.5mm.1.8mm,2.0mm,3.0mm.in normal working .
Bound edge plate thickness :0.4mm,0.5mm.0.8mm.
Layer:single,double,multilayer.
Disc Diameter: 5mm -300mm

The frame can be S.S., aluminum and nicked copper and the filter can be single layer and multi-layer, Above all depends on the requirement of our customers.

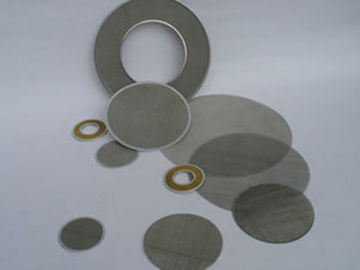

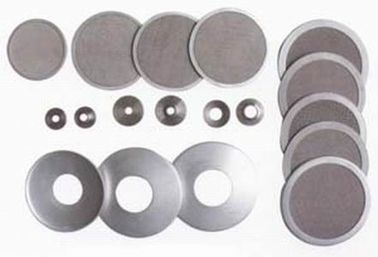

Wire mesh filter disc
Disc diameter: From 5mm to 600mm
Fineness: From 1mesh to 2800mesh

Multilayer extruder screen packs with spot welded or frame edges/filter disc mesh

Specification of Stainless steel filter mesh screen
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
7	1.00	2.63	304 or 316
10	0.60	1.94	304 or 316
12	0.50	1.62	304 or 316
16	0.40	1.19	304 or 316
16	0.35	1.24	304 or 316
18	0.35	1.06	304 or 316
20	0.40	0.87	304 or 316
24	0.26	0.80	304 or 316
30	0.30	0.55	304 or 316
35	0.17	0.56	304 or 316
40	0.23	0.40	304 or 316
50	0.20	0.31	304 or 316
60	0.15	0.27	304 or 316
70	0.12	0.24	304 or 316
80	0.13	0.19	304 or 316
90	0.12	0.16	304 or 316
100	0.10	0.15	304 or 316
120	0.09	0.12	304 or 316
150	0.063	0.11	304 or 316
180	0.053	0.09	304 or 316
200	0.053	0.07	304 or 316
220	0.05	0.065	304 or 316
250	0.04	0.062	304 or 316
270	0.035

Multilayer extruder screen packs with spot welded or frame edges/filter disc mesh

Application

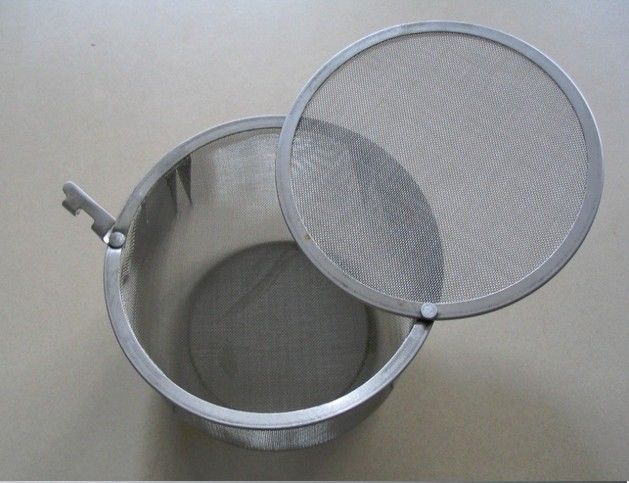

coffee filtration
Oil & Fuel Filters
Suction line strainers
Pressure line filters
Filters for Polyester fiber production
Microfiber,leather
woven fabrics,color masterbatch
plastic and rubber ,PVC granulation
sheet extrusion, carbon fiber
