Food grade Stainless Steel Wire Cloth Filter Disc Mesh/filter disc wire mesh

304 316 Stainless Steel Industrial Layered Filter Disc

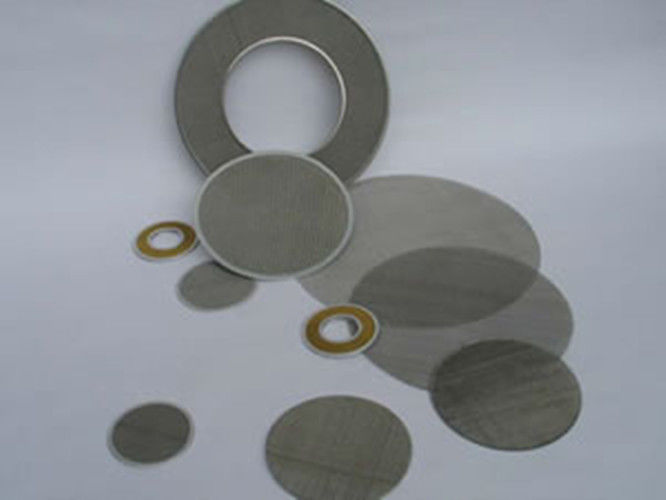

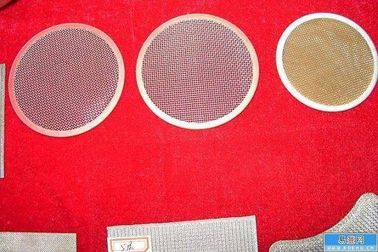

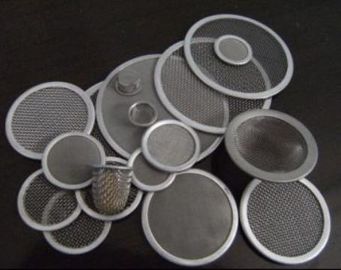

Stainless steel filter disc, also called stainless steel wire mesh filter disc, is one type of the metal filter discs.
We classify the manufacture process into three steps. First, we choose high quality stainless steel wire. Second,
stainless steel wire would be weaved or punched. Then, according to customers' special requirements,
we will select different material to wrap the edge. What's more, in the manufacture process,
we can provide stainless steel filter discs with different sizes, different shapes and different weaving methods.
All can be produced according to your specific requirements. Stainless steel filter disc features excellent acid and
alkali resistance and can be used in very harsh conditions, especially suitable for sour gas filtration.

Specifications

• Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
• Wire diameters: 0.01 mm - 5 mm.
• Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
• Weaving methods: plain weave, twill weave, dutch weave, etc.
• Layer: single layer or multiple layers.
• Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.
• Marginal materials: copper, aluminum, stainless steel, rubber, etc.
• Filtration precision: 0.2 µm - 100 µm.

Features

• Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance,
• accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
• Chemical properties: acid, alkali and corrosion resistance.
• Process properties: uniform controlled porosity, long service life, precision punched burr-free,
• compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.

Applications
Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.

• Water filtration: sewage water treatment and distribution, etc.
• Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.
• Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.
• Metallurgy: acid cleaning mesh in electric plating industry, etc.
• Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.
