| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 10000SET-20000SET |

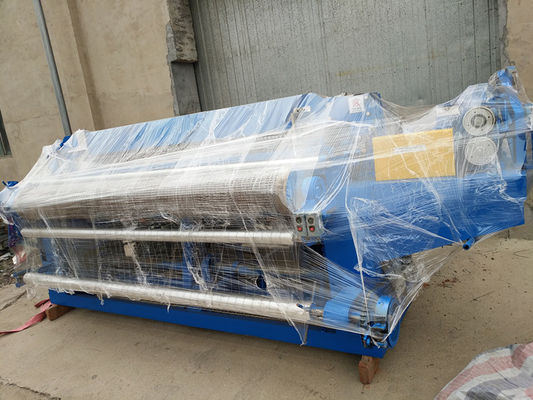

| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15 DAYS FROM WE GOT THE PAYMENT ADVANCE |
| Supply Ability: | 10SET/MONTH |
| Mesh Width: 1219.2, 1524, 1828.8, 2133.6: | Wire Diameter: 0.65mm-2.2mm | Mesh Opening Size: 1/4′′-4′′: | Capacity: 60kVA*4/5/6/7 |
|---|---|---|---|
| Voltage: 3phase, 220V/380V/415V/440V: | Motor: 2.2kw;4kw | Welding Speed: Max80rows/Min: | Weight: 2.0t, 2.5t, 3.0t, 3.5t |
Technical Parameter
| Model | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
| Wire diameter | 0.4mm-0.65mm | 0.65mm-2.2mm | 1.0mm-2.5mm |
|
Aperture/pitch |
6.35mm 12.7mm 1/4" 1/2" |
12.5mm 25mm 50 mm 1/2' ' 1'' 2'' |
25mm 50mm 75mm 100mm 1'' 2'' 3'' 4'' |
| Mesh width |
Max.914mm , 1000mm |
1.2m 1.5m 1.8m 2m | 1.2m-2.5m |
| Motor | 2.2 kw | 3kw;4kw | Max5.5kw |
| Welding speed | Max .75rows/min | Max .180 rows/min | Max . 180rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T,2.5T | 2T,2.5T,3T,3.5T |
| Transformers | 50kva*3 | 60kva*4/5/6/7 | 60kva*3/4/5/6/7/8 |
Notes
1. This machine can weld 0.4-2.5mm ,the raw material can be blace wire , galvanized wire , stainless steel wire
2. For the wire feeding ,both longitude wire and cross wire are feed automatically from wire coils
3.The edge cutter and middle cutter can adjust freely , So you can get regular edge and 2 or 3 rolls mesh at the same time
4.You can set the mesh roll length by counter switch on the control panel
5.Both welding time and welding current is adjustble on control panel to adjust the welding degree
mesh repair machine
Mesh repairing table
Welded wire mesh machine wire spool winding machine
bobbin stand-off
Electric control cabinet
Machine details:
1. electric box
2. repair mesh machine
3. repair mesh table
4. draw drum
5. spooling machine
6. pay-off swift
1) Installation and commissioning
Machine to be installed and commissioned by our technicians
The seller will send our engineer to install the machine accordingly if the buyer need
The buyer has to pay the salary US$100 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility
2) Guarantee
Except the wearing parts,
12 months guarantee for machine and 6 months
guarantee for electric appliance after shipment.
During guarantee time, if the parts were broken caused by the product problem,
seller will offer the parts by free.
If the parts were broken caused by the mishandling by buyer,
buyer needs to buy the parts from seller.
In order to give you one accurate quotation sheet,please supply us more of your requirements as below:
1.wire diameter range
2.mesh width
3.panel length
4.mesh opening size
5.industrial votage/frequency
We are a manufacturer of mesh welding machines in China, our factory is located in Anping county, Hebei Province. Our main products are:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
