| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 16000SET-30000SET |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15 DAYS FROM WE GOT THE PAYMENT ADVANCE |
| Supply Ability: | 10SET/MONTH |
| Mesh Width: Max.2.5m: | Wire Diameter: 2.5-6mm | Mesh Opening Size: 50*25-300*300mm: | Capacity: 60kVA*4/5/6/7 |
|---|---|---|---|
| Voltage: 220/380/415/440V: | Welding Speed: 45-75times/Min | Power Supply: 120kw: | Mesh Length: 6m |

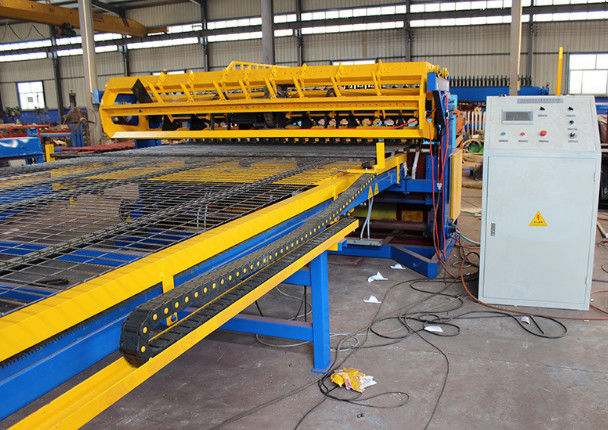

Best price automatic welded wire mesh fence machine factory
Technical parameter
| Model | XM-FS-2500A | Wire diameter | 2.5mm-6mm |
| Longitude wire space | 50mm-300mm | Cross wire space | 25mm-300mm |
| Mesh width | Max.2.5m | Longitude wire feeding | Pre-straightened &pre-cut |
| Welding speed | 45-75times/min | Cross wire feeding | Pre-straightened &pre-cut |
| Welding electrodes | 48pcs | Rated electrical power | 125kva*6pcs |
| Machine size | 8.4m*3.2m*1.7m | Weight | 4500kg |
| Packing& delivery | 45 days after we receive the prepaid 1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box. 2. The main machine will be fixed in the container by steel wire rope to make it stable. 3. It needs one 20 feet or 40 feet container for shipment. |
||
Wire mesh fence welding machine characteristic
welding time and separate-control welding are composed of PLC programmable system for digital input panel or touch screen buttons, more intelligent operation Wire mesh fence application
Used for railway fence, highway fence, expressway fence,
Related products:
1.Wire Mesh Welding Machines XM-RM-2500B for reinforcing mesh or steel bar mesh
wire diameter 5-12mm
mesh width 2.5m
mesh length max 12m
aperture 100-300mm
welding electrode 24pcs
welding transformer 150KVA*12
welding speed: 30-65 cross wires/min
2. Wire Mesh Welding Machines XM-FM-2500S for fence mesh or construction mesh
wire diameter 3-6mm
mesh width 2.5m
mesh length max12m
aperture 50-200mm
welding electrode 48pcs
welding transformer 150KVA*12
welding speed 45-75 cross wires/min
mesh drawing device, powered by Servo motor
line wire: pre-straightened and precut or coil wire
cross wire:pre-straightened and precut
end products: roll mesh or panel mesh
3. Full Automatic Wire Mesh Welding Machine XM-AC-1200S for construction mesh or poultry cage mesh
wire diameter 2-3.5mm
mesh width 1.2m
mesh length as required
aperture 50-200mm as required
welding electrode :16pcs or 25pcs as required
welding speed: 80-90corss wires/min
mesh drawing device, powered by Servo motor
line wire and cross wire: both from coil wire
end products: panel mesh or roll mesh
4. electric welded mesh machines for construction mesh
Wire diameter 0.8-2.0mm
mesh width 1.2-1.8m
mesh length as required
aperture 1/2"-4" as required
welding speed:80-120 cross wire/min
line wire and cross wire: both from coil wire
end products: roll mesh
