| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 3000USD-4500USD |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10SET/MONTH |
| Stock Wire Diameter: 1.5-2.8mm: | Barbed Wire Diameter: 1.6-2.2mm | Twist No.: 4: | Puncature Distance: 3"-6" |
|---|---|---|---|
| Speed Of Main Rotating Axis: 402r/Min: | Speed Of Pulling Rope: 470r/Min | Motor: 2.2kw: | Unit Wire Diameter: 2.2-3.0mm |

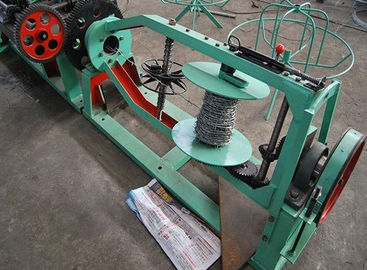

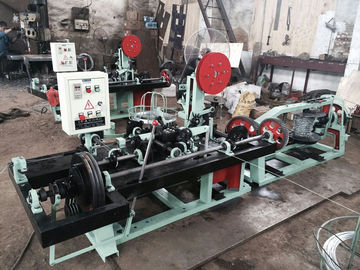

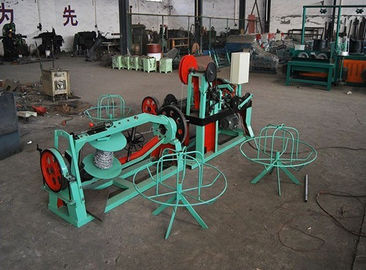

Best Price Full Automatic Barbed Wire Making Machine
Barbed wire machine could be classified into three types:normal double twisted barbed wire machine,reverse twisted barbed wire machine and single twisted barbed wire machine.It can produce double twisted barbed wire and single twisted barbed wire which is widely used in national defense,military, railway,highway agriculture animal husbandry and other industries. the material of barbed wire is usually hot dipped galvanized wire, electric galvanized wire and pvc coated wire etc.
Barbed wire machine is used to make double barbed wire which is widely used on
the airport, miltary, railway, highway, agriculture, animal husbandry and so on.
reversed Automatic Barbed Wire Making Machine Machine hot is used to make double barbed wire which is widely used on
the airport, miltary, railway, highway, agriculture, animal husbandry and so on.
Specifications
| Gauge of Strand and Barb in B.W.G. | Approximate Length per Kilo in Meter | |||
| Barbs spacing 3" | Barbs spacing 4" | Barbs spacing 5" | Barbs spacing 6" | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Model | CS-A | CS-B | CS-C |
| Motor | 2.2KW | 2.2KW | 2.2KW |
| Main drive shaft speed | 402r/min | 355r/min | 355r/min |
| wire diameter (mm) | 2.2-3.0 | 2.2-3.0 | 1.6-2.2 |
| Barbed wire diameter(mm) | 1.8-2.2 | 1.8-2.2 | 1.6-2.2 |
| Barbed space (mm) | 76, 102, 127 | 102, 127 | 102, 127 |
| Twisted number | 3-5 | 7 | |
| theoretical production | 77 kg/h | 40 kg/h | 40 kg/h |
| weight | 1000kg | 950kg | 950kg |
| Main part size(mm) | 1950*950*1300 | 3100*1000*1150 | 3100*1000*1150 |

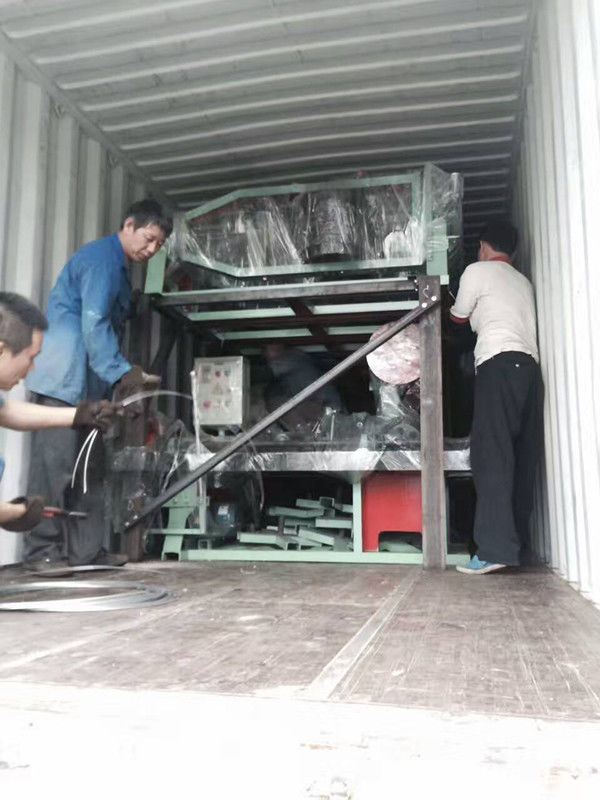

Packing of barbed wire making machine
Feature of barbed wire machine
1, simple structure and easy to operate
2, high working speed and low noise
Function of barbed wire
barbed wire is widely used in national defense, military, railway, highway, agriculture, animal husbandry and other industries
After-sales service
AFTER -SALES SERVICE: WE OFFER INSTALLATION AND TRAIN THE WORKERS FOR THE CUSTOMERS
OUR GUARANTEE TIME: ONE YEAR SINCE THE MACHINE WAS INSTALLED AT BUYER'S FACTORY WITHIN 18 MONTH AGAINST B/L DATE.
Guarantee period: 12MONTHS AFTER THE EQUIPMENT IS ACCEPTED BY THE BUYER, HOWER, THE GUARANTEE PERIOD IS NO LONGER THAN 18 MONTHS AFTER EQUIPMENT'S DEPARATURE FROM TIANJIN PORT, CHINA
