| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 13500usd-24500usd |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10SET/MONTH |
| Wire Diameter:2.0-2.5mm: | Voltage :380V/440V/Customized | Capacity 100kg/H: | Capacity For Razor Forming 9/11 Pieces/Time |
|---|---|---|---|
| Weight 6700kg: | Compressive Strength (For Crushing) 250-300MPA | Model Nine Strip: | Razor Type Cbt-65, Bto-22, Bto-30 |
| Motor | 5.5KW |
| Voltage | 380V |
| Capacity | 190-330kg/h (11pieces) |
| Dimension | 1800*1600*2650mm |
| Weight | 4.1T |
| Motor | 3KW |
| Voltage | 380V |
| Capacity | 100Kg/h |
| Dimension | 1100*900*1100mm |
| Weight | 345Kg |
1. Advantages
Easy operation, high efficiency, easy maintenance and moderate price.
Saves time, 20% raw materials and cost.
2. Working principle:

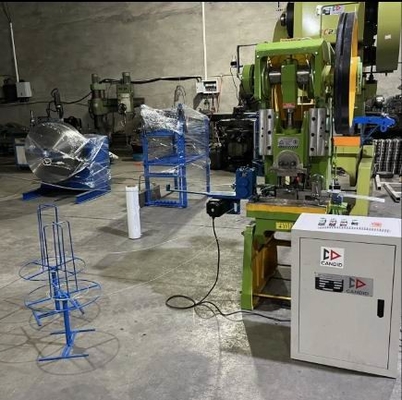

Razor barbed wire machine consists of razor strip making machine and coil machine.

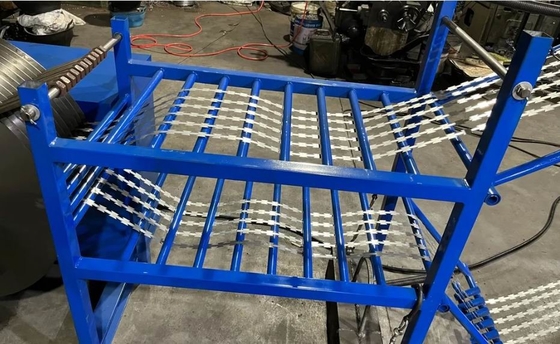

Razor strip making machine cuts steel strip into different razor shapes according to
different moulds.

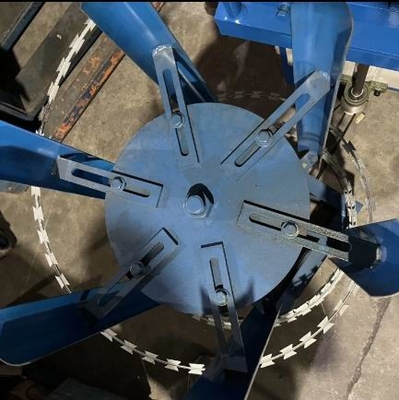

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished
products into rolls.
Raw material: low carbon wire.
3. Technical paramter
Concertina razor barbed wire machine
Razor barbed wire machine, also called Concertina razor barbed wire machine, Razor wire making machine, Razor wire fence machine, is used to make razor barbed wire for security use.

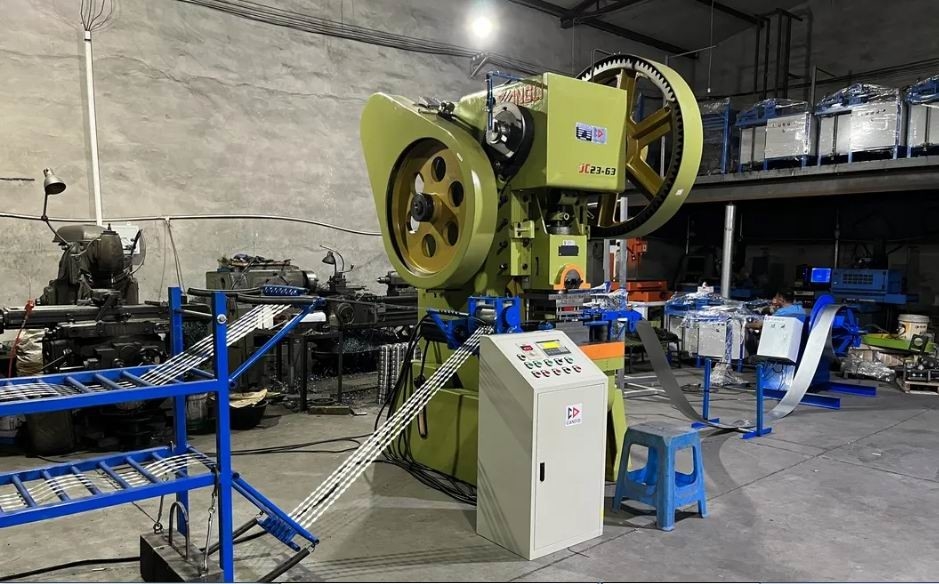

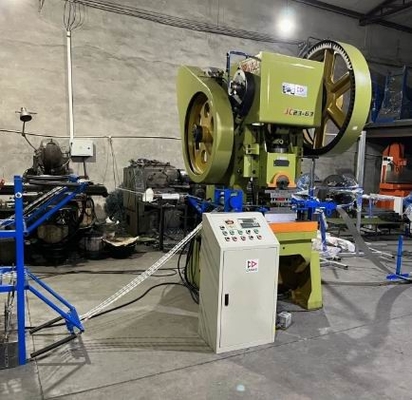

| Punching machine -- from YANGLI | Coiling machine-- Inverter controlled | |||||||
| Speed | 220-280m/h | 800 kgs/ 8hours | ||||||
| Raw material | Galvanized steel sheet; Or Stainless steel |
Galvanized wire | ||||||
| Thickness | 0.5±0.05mm | 2.5-3mm, 2.5mm is popular | ||||||
| Motor | 2.2kw/ 4kw/ 5kw | 1.5kw | ||||||
| Voltage | Customized as request | Customized as request | ||||||
| Weight | 2200/3300/ 4500Kgs | 300kgs | ||||||
| Dimension | 1325×990×2140 mm | 1100*750*1200mm | ||||||
| Razor model | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
Illustration | Punch Capacity (strips) | |||
| By 25T | By 40T | By 63T | ||||||
| BTO-22 | 22±1 | 15±1 | 34±1 |  |
9 | 9 | 11/13 | |
| BTO-65 | 65±1 | 21±1 | 100±1 | 5 | 9 | |||
| Our machine can make other razor models. Please contact us for more information: | ||||||||
4. Related machinery. - Hebei changrong metal products Co.,LTD
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.
4.2 Expanded metal mesh machine
Expanded metal making machine is to make expanded metal sheet for construction, protection fence, isolation mesh, decoration mesh, industrial filtering.
