| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM-1 |
| Minimum Order Quantity: | 1 rolls |
|---|---|
| Price: | 8usd-500usd |
| Packaging Details: | waterproof paper and woven bag |
| Delivery Time: | within 7days from we got the payment advance |
| Supply Ability: | 2000rolls/month |
| Materual: 304,304L.316,316L: | Wire Mesh Width: 1.2m,1m,1.5m,2m.3m,4m | Wire Diameter: Wire Diameter: 0.025- 3.5 Mm: | Weave Technique: Plain Weave, Twill Weave |
|---|---|---|---|
| Mesh: 2-635mesh: | Nickels: 8%-12% |

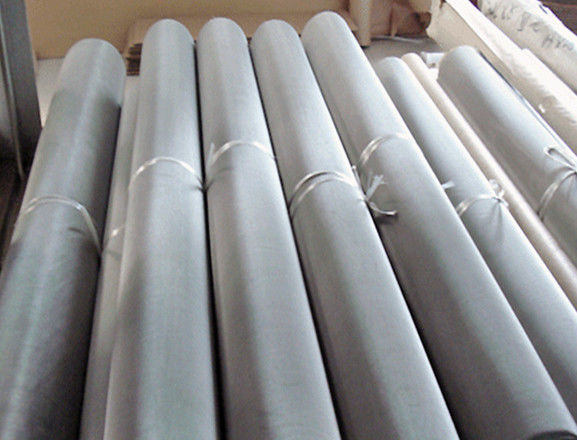

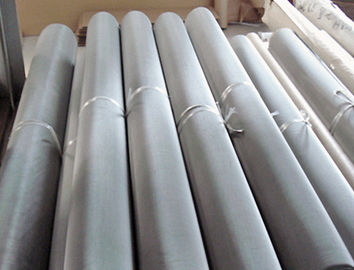

Stainless Steel Wire Mesh/ 300 325 400 500 635 Mesh Stainless Steel Wire Mesh
1.Raw Material: SUS302, 304, 316, 304L, 316L.
2.Typical Weaving Patterns: Plain weave, twill weave, dutch weave.
3.The normally Roll Width: 36", 40", 48", 60"
Roll Length: 50Ft and 100Ft
4.Specifications:
| Stainless steel wire mesh | |||||
| Mesh/Inch | Wire diameter (mm) |
Aperture (mm) |
Mesh/Inch | Wire diameter (mm) |
Aperture (mm) |
| 1 mesh | 5.00×5.00 | 20.40 | 90 mesh | 0.11×0.11 | 0.172 |
| 2 mesh | 1.80×1.80 | 10.90 | 100 mesh | 0.10×0.10 | 0.154 |
| 3 mesh | 1.60×1.60 | 6.87 | 120 mesh | 0.08×0.08 | 0.132 |
| 4 mesh | 1.20×1.20 | 5.15 | 140 mesh | 0.07×0.07 | 0.111 |
| 5 mesh | 1.00×1.00 | 4.08 | 150 mesh | 0.065×0.065 | 0.104 |
| 6 mesh | 0.80×0.80 | 3.43 | 160 mesh | 0.065×0.065 | 0.094 |
| 7 mesh | 0.70×0.70 | 2.93 | 165 mesh | 0.050×0.050 | 0.104 |
| 8 mesh | 0.65×0.65 | 2.53 | 180 mesh | 0.053×0.053 | 0.088 |
| 10 mesh | 0.60×0.60 | 1.94 | 200 mesh | 0.050×0.050 | 0.077 |
| 12 mesh | 0.50×0.50 | 1.62 | 200 mesh | 0.040×0.040 | 0.087 |
| 14 mesh | 0.45×0.45 | 1.36 | 225 mesh | 0.040×0.040 | 0.113 |
| 15 mesh | 0.40×0.40 | 1.29 | 250 mesh | 0.040×0.040 | 0.062 |
| 16 mesh | 0.40×0.40 | 1.19 | 250 mesh | 0.035×0.035 | 0.067 |
| 18 mesh | 0.35×0.35 | 1.06 | 270 mesh | 0.035×0.035 | 0.059 |
| 20 mesh | 0.30×0.30 | 0.97 | 290 mesh | 0.020×0.020 | 0.067 |
| 30 mesh | 0.25×0.25 | 0.60 | 300 mesh | 0.035×0.035 | 0.050 |
| 40 mesh | 0.21×0.21 | 0.43 | 325 mesh | 0.030×0.030 | 0.048 |
| 50 mesh | 0.19×0.19 | 0.32 | 325 mesh | 0.028×0.028 | 0.050 |
| 60 mesh | 0.15×0.15 | 0.27 | 350 mesh | 0.025×0.025 | 0.048 |
| 70 mesh | 0.14×0.14 | 0.22 | 400 mesh | 0.025×0.025 | 0.039 |
| 80 mesh | 0.12×0.12 | 0.20 | 500 mesh | 0.025×0.025 | 0.026 |
Notes: Standard products styles are shown in the tables above, special specifications are available on request. Standard materials are stainless steel.
5.General Use:
Stainless Steel Wire Mesh is mainly used as screening and filtering materials in oil industry, chemical industry, electronics, grain, rubber and other industries.
PACKING:
* Water-proof paper inside ,outside with bubble wrap
* Plywood case
* Special packing can customized
Advantages ]
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.

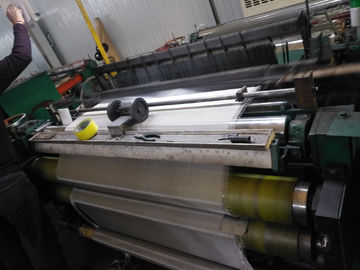

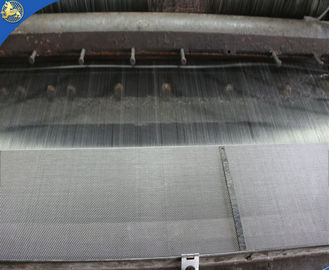

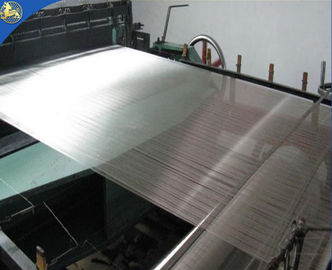

We use imported precision slitting machine,can article points precision mesh, plain weave, twill weave.
Maishi supply high quality which has smooth and bright surface,high hardness,high temperature resistance,non-deformation features.
