| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | iso9000 |
| Model Number: | JL1600-2JZ |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 10000usd-15000usd |
| Packaging Details: | container |
| Delivery Time: | 15days from we got the payment advance |
| Supply Ability: | 10set/month |
| Mesh Size:20mesh-400mesh: | Material: Stainless Steel ,copper Wire,brass Wire, Aluminum Wire | Width:1.3m: | Speed Of Crankshaft: 75rpm |
|---|---|---|---|
| Power:2.2kw: | Weight: 3500kg | Votalge :380v,50HZ: | Outside Size: 2419*3225*1849mm |

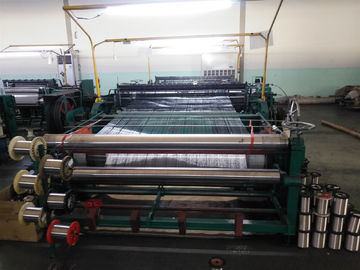

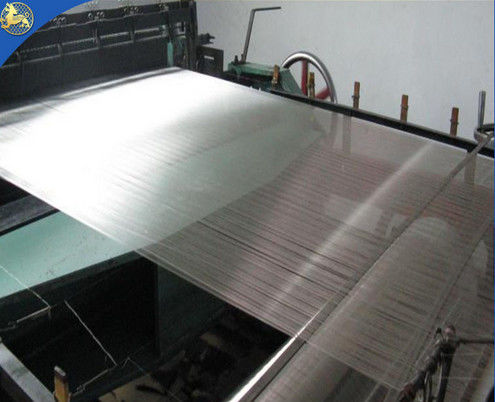

Metal wire mesh weaving machine/wire mesh weaving machine/wire mesh machine
1.Characteristics and usage:
The machine has the international level, it can instead of the imported machine. It adopted non shuttless lead the woof, and send longitude automatic by the machine, snip passively. The mesh that weave by the machine is widely used to filtrate the liquid and gas and soil grain in petroleum, chemical, machinery, war industry and spaceflight industry.
Single electromotor driving
2.Main parameter:
| type | max width of mesh | mesh density | speed of crankshaft | power of motor | overall weight |
| JL-1300D | 1300mm | 10-100 40-2800 |
75rpm | 2.2kw | 3500kg |
| JL-1600B | 1600mm | 10-100 40-2800 |
70rpm | 3kw | 4500kg |
| JL-2000 | 2000mm | 10-100 40-350 |
60rpm | 4kw | 6000kg |
Packing
Machine Product
1, single electromotor driving
2, Automatic compensation of winding and was feeding
3, It stopped automatically when the latitude and longitude is cutted off
4, be suitable for soft ferrous metal, flexible brass wire, galvanized wire and organic fiber
5, five kinds of arbitrary combination
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
Terms
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free, after this year can offer with the lowest cost.
Install and training: we will send two engineer to install and training the machine for the customer, and the salary is USD100 per day, the customer also need to pay for the tickets, hotel and foods.
Delivery time: 40days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery.
Packing: waterproof material, control box: wooden case
