| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 10000SET-20000SET |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15 DAYS FROM WE GOT THE PAYMENT ADVANCE |
| Supply Ability: | 10SET/MONTH |
| Mesh Width: 1219.2, 1524, 1828.8, 2133.6: | Wire Diameter: 0.65mm-2.2mm | Mesh Opening Size: 1/4′′-4′′: | Capacity: 60kVA*4/5/6/7 |
|---|---|---|---|
| Voltage: 3phase, 220V/380V/415V/440V: | Motor: 2.2kw;4kw | Welding Speed: Max80rows/Min: | Weight: 2.0t, 2.5t, 3.0t, 3.5t |
| wire diameter | 0.5-1.2mm |
| aperture of the mesh | 12.7*12.7,25.4*25.4mm |
| width | 1219.2mm |
| length | 100m |
| transformer | 60KVA*4 |
| motor | 4.0KW |
| speed | 80-100times/min |
| voltage | 380v 50hz |
| wire diameter | 1.2-1.4mm |
| aperture of the mesh | 25.4*25.4/50.8*50.8mm |
| width | 1219.2,1524mm |
| length | 100m |
| transformer | 75KVA*5 |
| motor | 5.5KW |
| speed | 80-100times/min |
| voltage | 380v 50hz |
| wire diameter | 1.4-2.7mm |
| aperture of the mesh | 25.4*25.4,50.8*50.8mm |
| width | 1219.2,50.8*50.8mm |
| length | 100m |
| transformer | 85KVA*5 |
| motor | 5.5KW |
| speed | 80-100times/min |
| voltage | 380v 50hz |
| wire diameter | 0.7-2.0mm |
| aperture of the mesh | 12.7*12.7,25.4*25.4,50.8*50.8 |
| width | 1219.2,1525mm |
| length | 100m |
| transformer | 85KVA*7 |
| motor | 5.5KW |
| speed | 80-100times/min |
| voltage | 380v 50hz |
| wire diameter | 0.8-2.5mm |
| apertue of the mesh | 12.7*12.7,25.4*25.4,50.8*50.8 |
| width of the mesh | 1219.2,1524,2006.6mm |
| length | 100m |
| transformer | 90KVA*5 |
| motor | 5.5KW |
| speed | 80-100times/min |
| voltage | 380v 50hz |

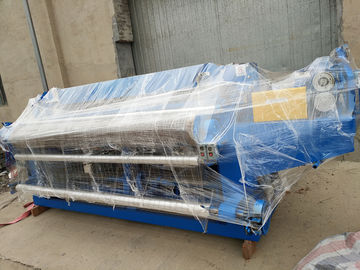

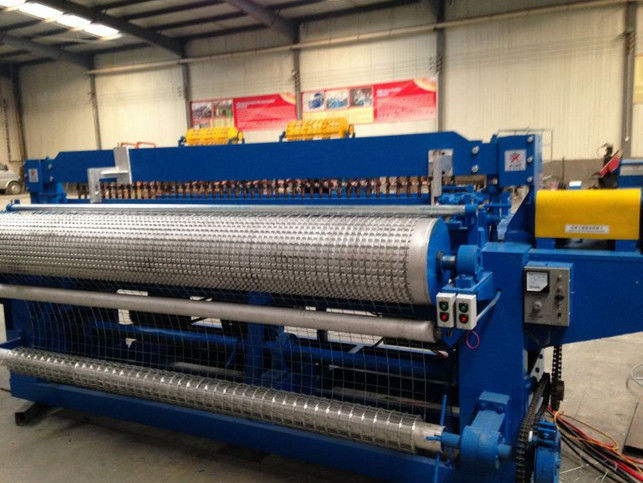

the main welded wire mesh machine
mesh repair machine
Mesh repairing table
Welded wire mesh machine wire spool winding machine
bobbin stand-off
Electric control cabinet
In order to give you one accurate quotation sheet,please supply us more of your requirements as below:
1.wire diameter range
2.mesh width
3.panel length
4.mesh opening size
5.industrial votage/frequency
We are a manufacturer of mesh welding machines in China, our factory is located in Anping county, Hebei Province. Our main products are:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
