| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | iso9001 |
| Model Number: | cs-a |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 4800usd/set |
| Packaging Details: | Wooden Pallet and Plastic Package in The Container |
| Delivery Time: | within 10 days from we got the payment advance |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50SET/MONTH |
| Motor Power:2.2/3.0 Kw: | Barbed Distance:3′(7.5cm) 4′(10cm) 5′(12.5cm) 6′(15cm) | Production Efficiency;120kg/H (Line Wire2.8mm, Barbed Wire 2.2 Mm): | Life Time:More Than 10 Years |
|---|---|---|---|
| Material:galvanized, Pvc Coated: | Producing Speed:3′(740m) 4′(990m) 5′(1235m) 6′(1485m) | After Sales Service;Reply Within 24 Hours: | Transport Package:Wooden Pallet And Plastic Package In The Container |
Product description
Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function,national defense, animal husbandry, playground fence,agriculture,expressway, etc.

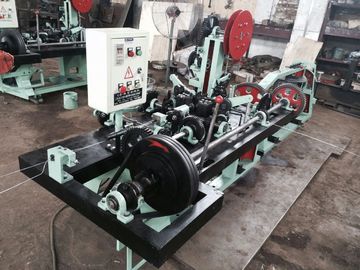

Our barbed wire making machine is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, low noisy, easy operation and regulation, convenient maintenance and low power consumption, which is suitable for producing all kinds of barbed wires.
The material can be galvanized wire, pvc coated wire,low carbon wire etc.
XINGMAO New Design Automatic Double Strand Twisted Barbed Wire Machine Manufacturer
1)Single twisted barbed wire netting machine is designed to produce screens with sing or double stranded barbed steel wire, thermo-plated with zinc. The machine is of together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
2)Double twisted bared wire netting machine is designed to produce screens with sing or double stranded barbed steel wire, thermo-plated with zimc. The machine is of horizontal design, , consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.

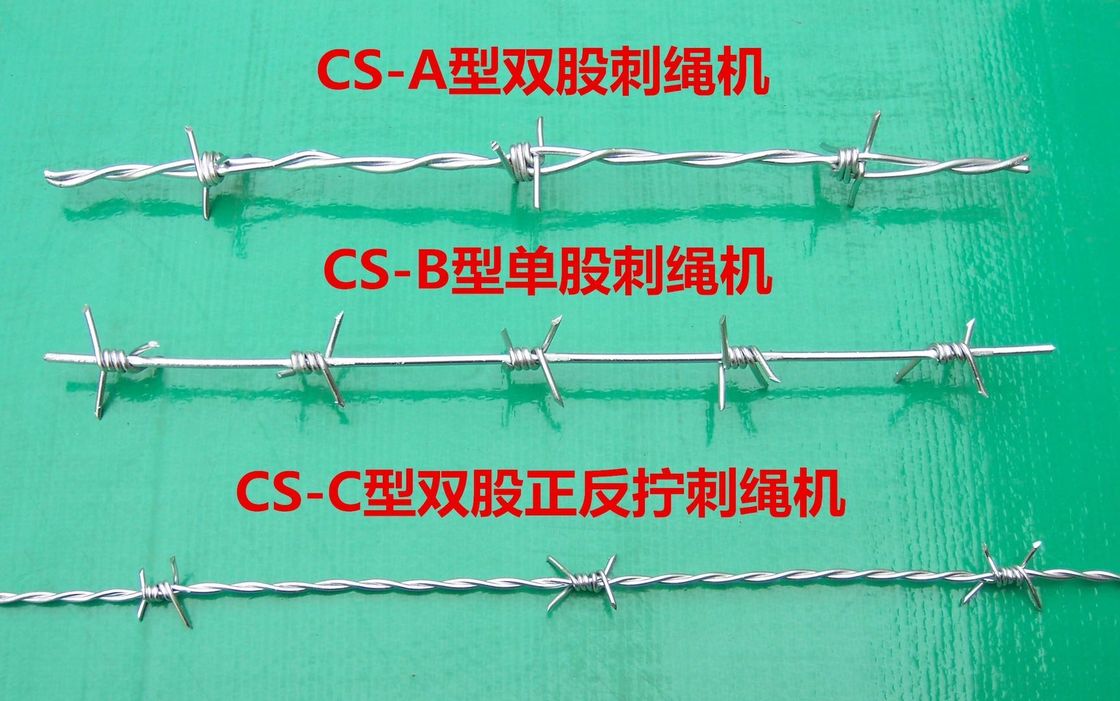

1, CS-A Double twisted Barbed Wire Machine is designed to produce screens with single or double-strand barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
2, CS-B single twisted Barbed Wire Machine is designed to produce screens with single or double-stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
3. CS-C Barbed Wire Machine for Two-strand Wire with Two-way Twistsis for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists. This way is easy to operate and install as they will not entwist with each other.
Application of the end mesh:
Mainly used for freeway fence ect
Manufacturer Automatic Barbed Wire Mesh MachineTechnical Parameters
| Unit | CS-A | CS-B | CS-C | |
| Motor power | KW | 2.2 | 2.2 | 2.2 |
| Main drive shaft speed | r/min | 402 | 355 | 355 |
| Strand wire diameter | mm | 1.6-3.0 | 2.0-3.0 | 1.6-2.8 |
| Barb wire diameter | mm | 1.6-2.8 | 1.6-2.8 | 1.6-2.8 |
| Barb pitch | Inch | 3" 4" 5" 6" or as your request | ||
| Twisted number | 3-5 | 5 | 7 | |
| Raw material | Galvanized steel wire or PVC coated wire. | Galvanized steel wire or stainless wire | Galvanized steel wire or stainless wire | |
| Production |
70kg/h, 20 meters/minute |
40kg/h, 17 meters/minute |
40kg/h, 16.5 meters/minute |
|
| Total weight | KG | 1200 | 1000 | 1000 |
| Dimension | mm | 1950×950×1300 | 3100×1000×1150 | 3100×1000×1150 |
It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality
with compact structure, small volume, easy operation and regulation, convenient maintenance and low power
consumption, which is suitable for producing all kinds of barbed wires. The material can be galvanized wire,
pvc coated iron wire. The products are most used in highway, railway, grassland parapet and other places.
Advantage of barbed wire machine
Double twisted barbed wire machine is designed to produce screens with single or double-strand barbed steel wire,thermo-plated with zinc.
The machine is of horizontal design,consisting of two parts,assembled together at the middle.
It is safe and realible in operation,capable of turnning out high quality products with consistency.
