| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 3000USD-4500USD |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10SET/MONTH |
| Stock Wire Diameter: 1.5-2.8mm: | Barbed Wire Diameter: 1.6-2.2mm | Twist No.: 4: | Puncature Distance: 3"-6" |
|---|---|---|---|
| Speed Of Main Rotating Axis: 402r/Min: | Speed Of Pulling Rope: 470r/Min | Motor: 2.2kw: | Unit Wire Diameter: 2.2-3.0mm |
best price used barbed wire machine for sale
Barbed wire machine could be classified into three types:normal double twisted barbed wire machine,reverse twisted barbed wire machine and single twisted barbed wire machine.It can produce double twisted barbed wire and single twisted barbed wire which is widely used in national defense,military, railway,highway agriculture animal husbandry and other industries. the material of barbed wire is usually hot dipped galvanized wire, electric galvanized wire and pvc coated wire etc.
Barbed wire machine is used to make double barbed wire which is widely used on
the airport, miltary, railway, highway, agriculture, animal husbandry and so on.

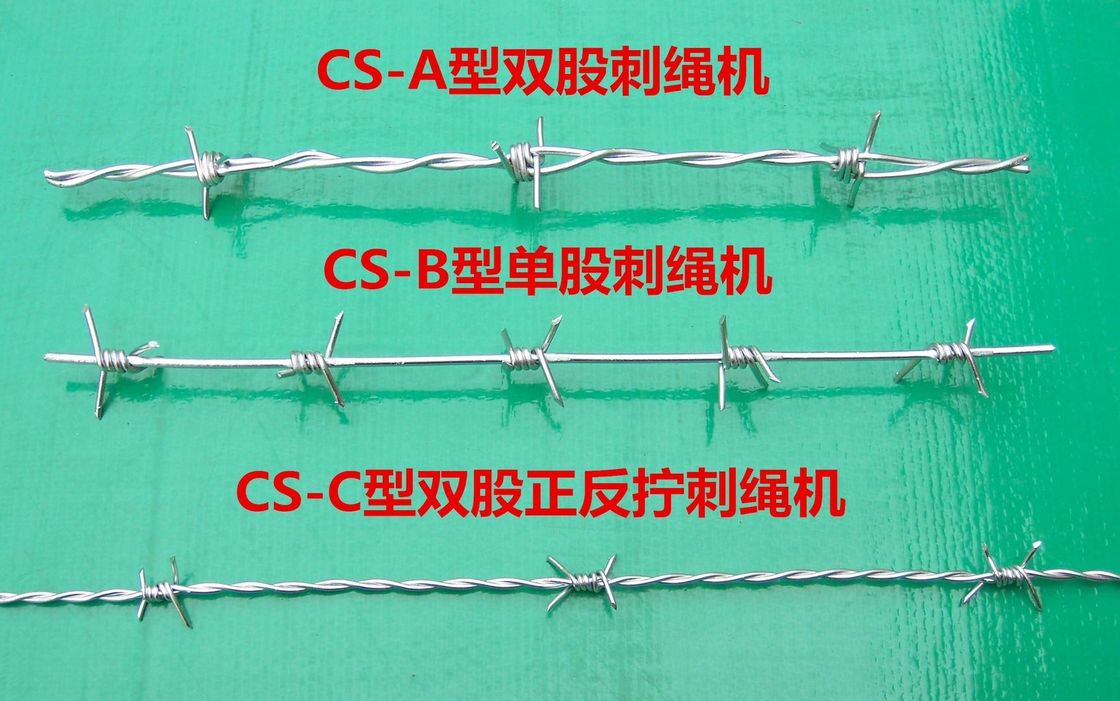

barbed wire machine: can produce
barbed wire single or double twisted
Stranded barbed steel wire,
thermo-plated with zinc.
Barbed wire machine:

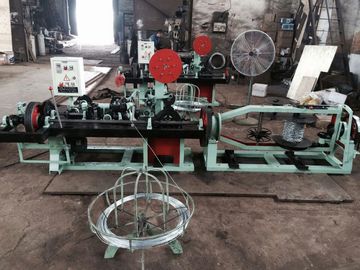

Our barbed Wire Machine is designed to produce barbed wire single or double twisted. Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
1. CS-C TYPE POSITIVE AND NEGATIVE TWIST BARBED WIRE MACHINE
TWISTED BARBED WIRE
THE MATERIAS USED ARE GENERAL HOT PLATED CARBON STEEL AND LOW-STRENGTH STEEL WIRE, USING POSITIVE AND NEGATIVE TWIST WAY FOR WINDED FLOWERS. THE BARBED WIRE PRODUCTS HAS NO REBOUNDING AND WINDING PHENOMENON, SO IT IS MORE BEAUTIFUL COMPARED WITH ORDINARY BARBED WIRE.
MAIN TECHNICAL DATA:
| NO. | ITEM | UNITS | DATA |
| 1 | MOTOR | KW | 2.2 |
| 2 | MAIN DRIVE SHAFT SPEED | R/min | 355 |
| 3 | Unit Wire Diameter | mm | 1.6--2.8 |
| 4 | Barbed Wire Diameter | mm | 1.6--2.2 |
| 5 | Thorn distance | mm | 102 (4 inch) 127 (5 inch) |
| 6 | Twist Number | Pcs | 7 |
| 7 | Theoretical Yield | Kg/n | 40 |
| 8 | Total Weight | Kg | 1000 |
| 9 | Dimensions | mm | 3000x1000x1150 |
Note:Special specification models can be customized according to customer's request.
2. CS-A TYPE BARBED WIRE MACHINE
GENERAL BARBED WIRE
The materials used are general hot plated low carbon steel wire and plastic coated wire. The products are widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
MAIN TECHNICAL DATA:
| NO. | ITEM | UNITS | DATA |
| 1 | MOTOR | KW | 2.2 |
| 2 | MAIN DRIVE SHAFT SPEED | R/min | 402 |
| 3 | Unit Wire Diameter | mm | 2.0--3.0 |
| 4 | Barbed Wire Diameter | mm | 1.8--2.2 |
| 5 | Thorn distance | mm | 76(3inch) 102 (4inch) 127 (5inch) 153(6inch) |
| 6 | Twist Number | Pcs | 2.5 |
| 7 | Theoretical Yield | Kg/n | 90 |
| 8 | Total Weight | Kg | 1000 |
| 9 | Dimensions | mm | 1950x950x1300 |
| 10 | Dimension of Take-twisting part | mm | 1760x550x760 |
Note:Special specification models can be customized according to customer's request.
3. CS-B TYPE SINGLE BARBED WIRE MACHINE
SINGLE BARBED WIRE
The materials used are general hot plated low carbon steel wire and low-strength steel wire,. Main features: saving materials.
MAIN TECHNICAL DATA:
| NO. | ITEM | UNITS | DATA |
| 1 | MOTOR | KW | 2.2 |
| 2 | MAIN DRIVE SHAFT SPEED | R/min | 355 |
| 3 | Unit Wire Diameter | mm | 2.0--3.0 |
| 4 | Barbed Wire Diameter | mm | 1.8--2.2 |
| 5 | Thorn distance | mm | 102 (4inch) 127 (5inch) |
| 6 | |||
| 7 | Theoretical Yield | Kg/n | 40 |
| 8 | Total Weight | Kg | 1000 |
| 9 | Dimensions | mm | 3100x1000x1150 |
Note:Special specification models can be customized according to customer's request.
V.Commercial terms
1. FOB price: Barbed Wire Machine CS-A: 4380 USD FOB Xingang Port, China
2. Payment: 30% T/T in advance, the balance 70% by T/T after check the machine at seller's factory.
3. Minimum order quantity: 1 set
4. Certification: ISO 9001 Certificate
5. Delivery time: 30 days from received your payment in advance.
6. Country of origin: China
7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
8. Installation: we could arrange our engineer install the machine in your factory.
7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
8. Installation: we could arrange our engineer install the machine in our factory.
Our service:
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
After sale service
NO.1
We provide exactly install videos and live video of instruction.
NO.2
We will send our best engineer to buyer's factory for installation, debugging and training.
Guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date.
NO.3
We promiss the original part purchasing of machines in ten years.
