| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | iso9000 |
| Model Number: | JL1600-2JZ |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 10000usd-15000usd |
| Packaging Details: | container |
| Delivery Time: | 15days from we got the payment advance |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10set/month |
| Mesh Size:20mesh-400mesh: | Material: Stainless Steel ,copper Wire,brass Wire, Aluminum Wire | Width:1.3m: | Speed Of Crankshaft: 75rpm |
|---|---|---|---|
| Power:2.2kw: | Weight: 3500kg | Votalge :380v,50HZ: | Outside Size: 2419*3225*1849mm |

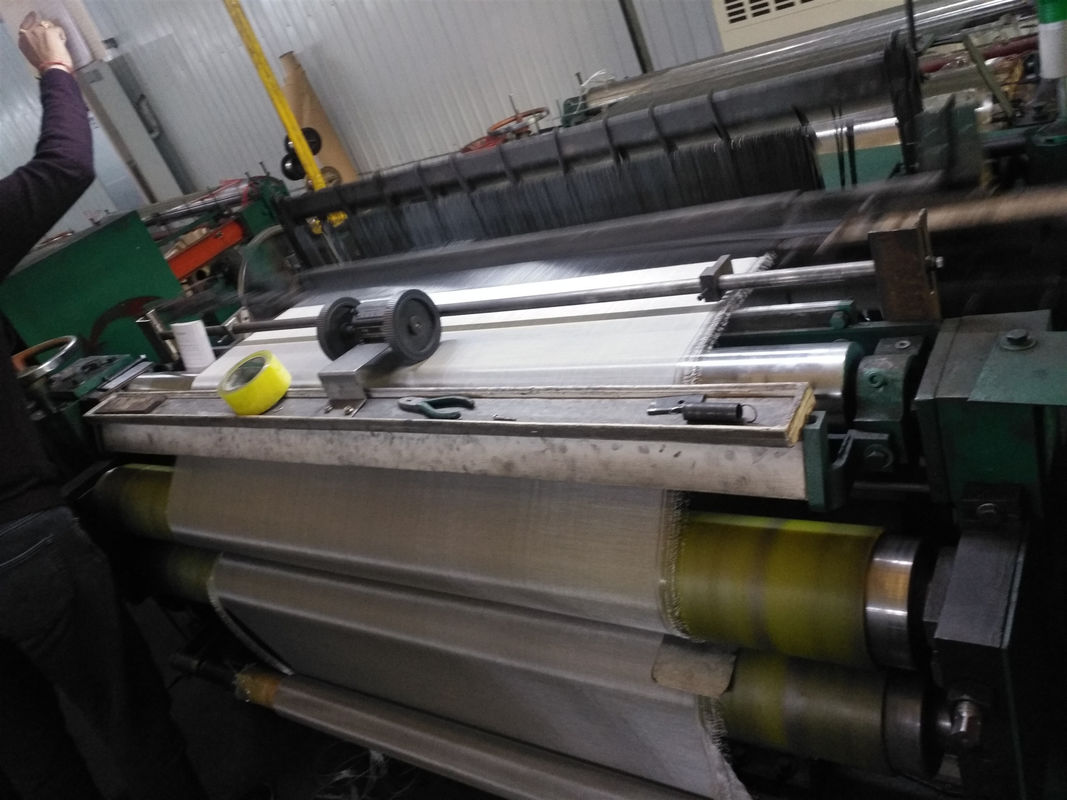

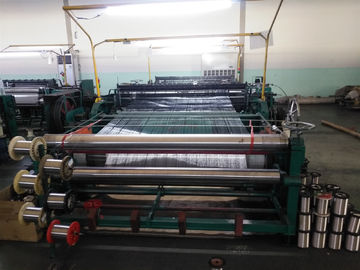

Metal wire mesh weaving machine/wire mesh weaving machine/wire mesh machine
1. Characteristics and usage:
The machine has the international level; it can instead of the imported machine. It adopts non -shuttle less lead the woof, and sends longitude automatic by the machine, snip passively. The mesh that weave by the machine is widely used to filtrate the liquid and gas and soil grain in petroleum, chemical, machinery, war industry and spaceflight industry.
1. Single electromotor driving
2. Automatic compensation of winding and warp feeding
3. Automatic pause and alarming of weft and warp snapping
4. Be propitious to soft ferrous metal, stainless steel, flexible brass wires, galvanized wire and organic fiber
5. Five heddles of arbitrary combination
2. Main technical parameter:
1. The max width of weaving: 1600mm
2. Mesh: square 6--100 mesh
Special mesh: 40--350 mesh
3. Speed of crankshaft: 53 rpm
4. Power of motor: 4kw
5. Overall weight: 6000kg
6. outside size: 2419*3225*1849
2.Main parameter:
| type | max width of mesh | mesh density | speed of crankshaft | power of motor | overall weight |
| JL-1300D | 1300mm | 10-100 40-2800 |
75rpm | 2.2kw | 3500kg |
| JL-1600B | 1600mm | 10-100 40-2800 |
70rpm | 3kw | 4500kg |
| JL-2000 | 2000mm | 10-100 40-350 |
60rpm | 4kw | 6000kg |
ZWJ-1300 Middle-Heavy-Type Metal Wire Mesh Weaving Machine
Characteristic and application: This type of machine is up to the international advanced standard. With leading weft shuttleless-straightaway, feeding warp and furling mechanically-automatically, automatic stop weaving upon breaking of wire. The metal wire mesh by this type of weaving machine is widely used in filtering of liquid and gas and sieving of solid particle in petroleum, chemcial industry, equipment and machinery, military industry, aerospace etc.
Machine details:
1. electric box
2. repair mesh machine
3. repair mesh table
4. draw drum
5. spooling machine
6. pay-off swift
1) Installation and commissioning
Machine to be installed and commissioned by our technicians
The seller will send our engineer to install the machine accordingly if the buyer need
The buyer has to pay the salary US$100 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility
2) Guarantee
Except the wearing parts,
12 months guarantee for machine and 6 months
guarantee for electric appliance after shipment.
During guarantee time, if the parts were broken caused by the product problem,
seller will offer the parts by free.
If the parts were broken caused by the mishandling by buyer,
buyer needs to buy the parts from seller.
Terms
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free, after this year can offer with the lowest cost.
Install and training: we will send two engineer to install and training the machine for the customer, and the salary is USD100 per day, the customer also need to pay for the tickets, hotel and foods.
Delivery time: 40days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery.
Packing: waterproof material, control box: wooden case
