| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3800usd/set-4800usd/set |
| Packaging Details: | wooden box |
| Delivery Time: | within 5ays from we got the payment |
| Supply Ability: | 10set/month |
| Nail Length(Mm): 20mm-100mm: | Nail Diameter: 1.2mm-4.0mm | Motor Power: 4kw: | Nail Making Speed: 250PCS/Min |
|---|---|---|---|
| Weight: 1900kgs: | Voltage: 220/380V |
Function of nail making machine:
Nail making Machine is mainly used for manufacturing all kinds of nails.
Both scrap and new sttel wire can be used to make nails, It can feed the materials automatically,
It is high speed, low noise, low power, less imppact and good continuity.
4C automatic nail machines factory

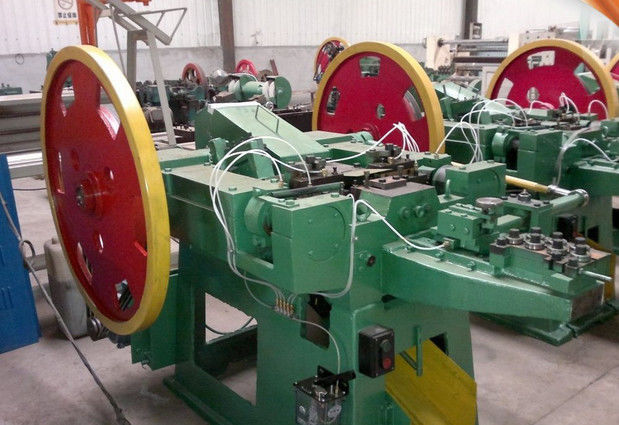

Description of the machine
This new machine adopts plunger and oil lubricating structure to ensure the high working speed .low noise and less impact .
It has the features of advanced design, compact conformation and attractive appearance .It is easy and safe to operate.
Parameter of the machine
Type |
1c |
2c |
3c |
4c |
5c |
6c |
Range of nail length(mm) |
20 |
25-50 |
50-75 |
50-100 |
75-150 |
150-210 |
Range of nail diameter(mm) |
1.2 |
2.0-2.5 |
2.5-3.2 |
2.5-4.0 |
3.0-5.0 |
5.0-7.0 |
Nail making speed(pcs/min) |
450 |
300 |
280 |
250 |
250 |
180 |
Motor power (kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
11 |
Weight(kg) |
900 |
1350 |
1600 |
1900 |
2500 |
5500 |
Overall dimension(mm) |
1350*950*1000 |
1650*1150*1100 |
1990*1200*1250 |
2280*1420*1330 |
2300*1450*1500 |
3510*1940*2015 |
Advantages:
(1)The machine has attractive appearance, rational structure and high efficiency. It's also v durable in use, easy to maintenance with adequate durability.
(2)All the main components are made of quality steel, such as shaft, cams and gear.
(3) Use control handle at the inlet place in order to control incoming line at any time during operating.
(4) A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded.
(5) The machine makes use of full automatic production procedure. Once start, it could make nails continuously.
High speed wire nail making machine is in high speed and low noise. Wire nail making machine adopts plunger type structure so as to ensure the features such as high speed , Low noise and less impact. Especially, wire nail making machine can make the high quality of oil rivet nail and other shaped nails used for high speed welding nailer and nail gun.
Features of wire nail making machine
1. This wire nail making machine can feed the materails automatically
2. This wire nail making machine is with high speed, low noise and less impact
3. All main parts of wire nail making machine are with high quality steel
4. Finished product made by this wire nail making machine will be sharp and symmetrical.
Process line to produce nails:
1. Wire drawing machine -- to form the exact wire diameter to make nails as required
2. Wire nail making machine -- to make nails
3. Polishing machine -- to polish finished nails
Flow chart of wire nail making machine:
Scrap steel or new wire - wire darwing - nail making - nail polishing - end nails
1.
| Main part | wire drawing machine | drawing the wires from big diameter to smaller ones smoothly |
| nail making machine | making nails in 9-150mm | |
| nail polishing machine | washing the nails and let them brighten and perfect | |
| Auxiliary Equipment | Nail cutter Grinder | grinding the nail cutter, make them sharpen, longger the nail cutter using time |
| Point rolling machine | cut the head of wire rods, and let it easy to feed in the wire drawing machine | |
| Butt welding machine | welding the broken wires when drawing |
2. the spare parts for nail making and wire drawing:

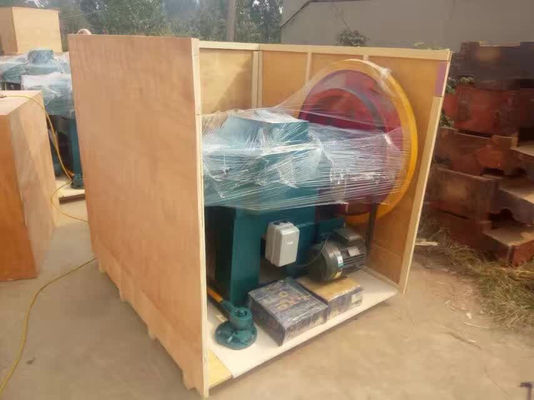

3, Package of the machine, wooden case or customizable and Delivery the machine to our port by truck and ship the machine to your port by sea.
Machine features
1. The nail making machine has the features of small in size, easy to move, low noise, low power consumption, and it is easy to operate, just need to change different size mould for making different diameter nails, if you want to make different lengths of nails for same diameter, no need to change anything.
2. The nail making machines can feed the materials automatically, and making nail body straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.
3. The main components (shaft, cams and gear) of nail machine are made of high quality steel, and durable in use, has good stability.
4. Free training of operating machines is offered for fee.
