Name: Direct Factory Straight and Reverse Twisted Barbed Wire Machine
Brand: HEBEI CHANGRONG METAL PRODUCTS CO.,LIMITED
SKU: XM
Price: Negotiable USD
Availability: InStock

Home Products barbed wire machine

Direct Factory Straight and Reverse Twisted Barbed Wire Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	XM
Certification:	ISO9001
Model Number:	XM

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	3000USD-4500USD
Packaging Details:	WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST
Delivery Time:	WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10SET/MONTH

Contact Now

Detailed Product Description

Stock Wire Diameter: 1.5-2.8mm:	Barbed Wire Diameter: 1.6-2.2mm	Twist No.: 4:	Puncature Distance: 3"-6"
Speed Of Main Rotating Axis: 402r/Min:	Speed Of Pulling Rope: 470r/Min	Motor: 2.2kw:	Unit Wire Diameter: 2.2-3.0mm

Product Description

Best Price Full Automatic Barbed Wire Making Machine
reversed Automatic Barbed Wire Making Machine Machine hot is used to make double barbed wire which is widely used on the airport, miltary, railway, highway, agriculture, animal husbandry and so on.
Specifications of reversed Automatic Barbed Wire Making Machine Machine hot

1 double braid common barbed wire machine
it is utilized to manufacture barbed wire made of galvanization iron wire and PVC iron wire.

main parameter

NO	Items	unit	parameter
1	motor	KW	3
2	Main transmission shaft speed	r/min	432
3	Theory capacity	Kg/h	70
4	weight	Kg	1500
5	Overall dimension	mm	1900× 1300× 980
6	Wire drawing size	mm	1800× 750× 750
7	Barb spacing	mm	76(3)102(4)
8	Number of twists	piece	4
9	Diameter of section wire	mm	2.2-2.8
10	Diameter of barb wire	mm	1.8-2.2

2. double braid and opposition twist barbed wire machine
the machine adopts opposition twist to weaving lapups. The barbed wire made by the machine is perfect without springback and circumnutation. It is easy to install and operate.

main parameter

NO	Items	unit	parameter
1	motor	KW	2.2
2	Main transmission shaft speed	r/min	432
3	Theory capacity	Kg/h	40
4	weight	Kg	1200
5	Overall dimension	mm	1900× 1300× 980
6	Wire drawing size	mm	1300× 800× 700
7	Barb spacing	mm	76(3> )102> (4)
8	Diameter of section wire	mm	2.2-2.8
9	Diameter of barb wire	mm	1.8-2.2

3. single braid barbed wire machine
it is utilized to manufacture single braid barbed wire. its character is saving material, operate easily and low noise.

NO	items	unit	parameter
1	motor	KW	2.2
2	Main transmission shaft speed	r/min	357
3	Theory capacity	Kg/h	50
4	weight	Kg	1200
5	Overall dimension	mm	1900× 1300× 980
6	Wire drawing size	mm	1300× 800× 700
7	Barb spacing	mm	According to customers' requirements
8	Number of twists Barb spacing	piece	46
9	Diameter of section wire	mm	1.6-2.6
10	Diameter of barb wire	mm	1.6-2.2

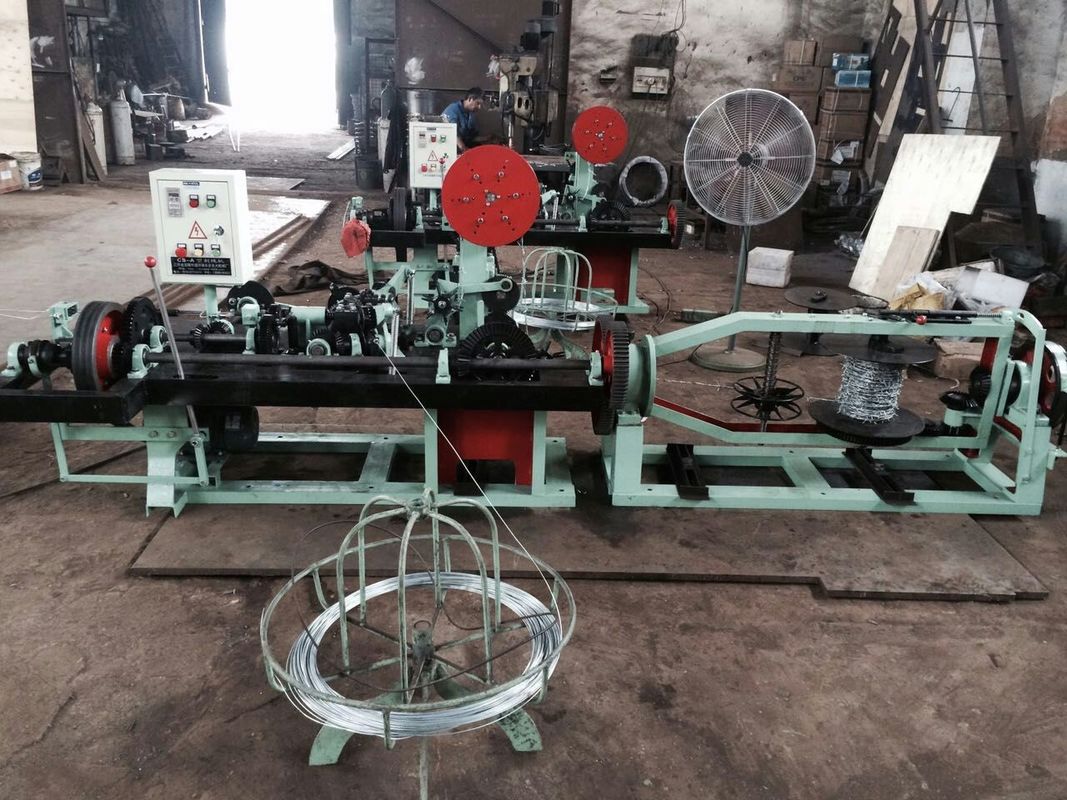

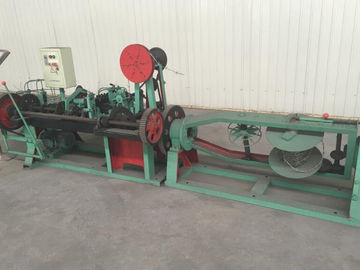

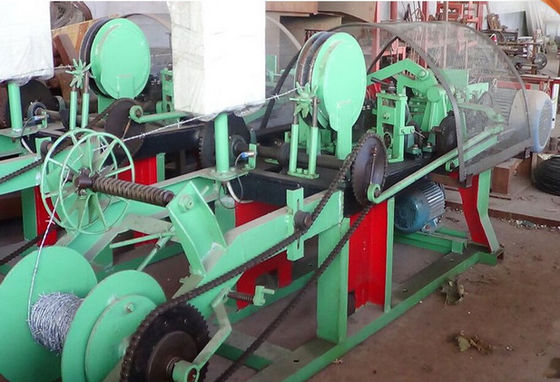

Direct Factory Straight and Reverse Twisted Barbed Wire Machine

Packing of barbed wire making machine Direct Factory Straight and Reverse Twisted Barbed Wire Machine

Direct Factory Straight and Reverse Twisted Barbed Wire Machine

Our machinery mainly includes: wire mesh weaving machine; wire mesh welding machine.
Nail making machine, Steel fiber machine,
Wire drawing machine, Wire straightening and cutting machine,
Barbed wire machine, Razor barbed wire machine,
Chain link fence machine, Crimped wire mesh machine,
Expanded metal mesh machine, Grassland fence machine,
Hexagonal wire netting machine, Gabion mesh machine,
Ribbed rolling wire machine, PVC coated wire machine
