80*100 Automatic Hexagonal Wire Mesh Machine /Gabion Box Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	XM
Certification:	ISO9001
Model Number:	XM3-21

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	42000usd-50000usd/set
Packaging Details:	bulk ,small part for wooden box
Delivery Time:	within 15days from we got the payment advance
Supply Ability:	5set/month

Contact Now

Detailed Product Description

Speed:T 165-225m/Hour:	Power::T 22kw	Voltage: 220V:	Mesh Size: 60X80/ 80X100/100X120/120X150
Box Sizes: 1m1m1m:2m1m1m;3m1m1m;:	Wire Gauge: 2mm-4mm,0.5-5.0mm	Aperture: 6080mm, 80100mm, 80*120mm:	Working Width: 2m, 3m, 4.2m, 5.0m
Max Output: 50-60 Spm:	Specification: 720014002300mm

Product Description

Gabion mesh machine

Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.

The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.

It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style

4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.2mm Wire, 22kw

Twist Gabion Hexagonal Wire Netting Machines With Automatic Oil System

Our machine adapts PLC frequency control after being improved.

the advantages for PLC frequency control for you .

1,It is touch screen control.

2,It has the function of frequency control of motor speed according to different of wire diameter.

3,It has buffer function when speed increase or decrese in very short time.

4,It can count output every day or every year.

5,It can save about 30% energy.

Main parameters

Specifications	Maximum width	Maximum diameter	Power of motor	Knitting speed	Exterior size	Weight(T)
60x80	2400mm	3.2mm	15kw	165m/hour	520014002400	13.5
	3300	3.2	18		620014002400	15
	4300	3.2	22		720014002400	16
80x100	2400	3.2	15	200m/hour	520014002400	13.5
	3300	3.2	18		620014002400	15
	4300	3.2	22		720014002400	15.5
100x120	2400	3.8	15	220m/hour	520014002400	13.5
	3300	3.8	18		620014002400	16
	4300	3.8	22		720014002400	15.5
120x150	2400	4.0	15	230m/hour	520014002400	13.5
	3300	4.0	18		620014002400	15
	<4300	4.0	22		720014002400	16

Standard production line

1	Gabion mesh machine	1 set
2	Netting winging machine	1 set
3	Wire tension device	1 set
4	Spring coiling machine	1 set

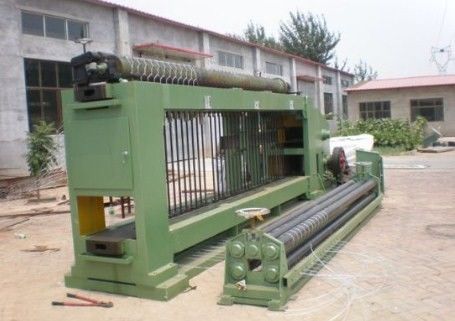

Gabion mesh machine

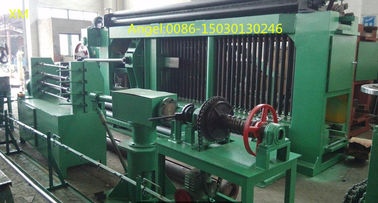

80*100 Automatic Hexagonal Wire Mesh Machine /Gabion Box Machine

Wire spring winding machine

Wire tension machine

Mesh rolling machine
