| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM3-21 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 42000usd-50000usd/set |
| Packaging Details: | bulk ,small part for wooden box |
| Delivery Time: | within 15days from we got the payment advance |
| Supply Ability: | 5set/month |
| Speed:T 165-225m/Hour: | Power::T 22kw | Voltage: 220V: | Mesh Size: 60X80/ 80X100/100X120/120X150 |
|---|---|---|---|
| Box Sizes: 1m*1m*1m:2m*1m*1m;3m*1m*1m;: | Wire Gauge: 2mm-4mm,0.5-5.0mm | Aperture: 60*80mm, 80*100mm, 80*120mm: | Working Width: 2m, 3m, 4.2m, 5.0m |
| Max Output: 50-60 Spm: | Specification: 7200*1400*2300mm |
| Mesh size | Max width | Wire diameter | Twisting number | Main shaft speed | Motor | m/h | Twisting net No/min | Outside dimension | Weight |
| 60*80mm | 2.3m | 2-4mm | 3 | 3 | 11 | 165 | 25 | 5200*1400*2400 | 13 |
| 3.3m | 2-4mm | 3 | 3 | 15 | 165 | 25 | 6200*1400*2400 | 14 | |
| 4.3m | 2-4mm | 3 | 3 | 22 | 165 | 25 | 7200*1400*2400 | 15 | |
| 80*100mm | 2.3m | 2-4mm | 3 | 3 | 11 | 195 | 25 | 5200*1400*2400 | 13 |
| 3.3m | 2-4mm | 3 | 3 | 15 | 195 | 25 | 6200*1400*2400 | 14 | |
| 4.3m | 2-4mm | 3 | 3 | 22 | 195 | 25 | 7200*1400*2400 | 15 | |
| 100*120mm | 2.3m | 2-4mm | 3 | 3 | 11 | 225 | 25 | 5200*1400*2400 | 13 |
| 3.3m | 2-4mm | 3 | 3 | 15 | 225 | 25 | 6200*1400*2400 | 14 | |
| 4.3m | 2-4mm | 3 | 3 | 22 | 225 | 25 | 7200*1400*2400 | 15 | |
| 100*137mm | 2.3m | 2-4mm | 3 | 3 | 11 | 250 | 25 | 5200*1400*2400 | 13 |
| 3.3m | 2-4mm | 3 | 3 | 15 | 250 | 25 | 6200*1400*2400 | 14 | |
| 4.3m | 2-4mm | 3 | 3 | 22 | 250 | 25 | 7200*1400*2400 | 15 | |
| 120*150mm | 2.3m | 2-4mm | 3 | 3 | 11 | 216 | 25 | 5200*1400*2400 | 13 |
| 3.3m | 2-4mm | 3 | 3 | 15 | 216 | 25 | 6200*1400*2400 | 14 | |
| 4.3m | 2-4mm | 3 | 3 | 22 | 216 | 25 | 7200*1400*2400 | 15 |

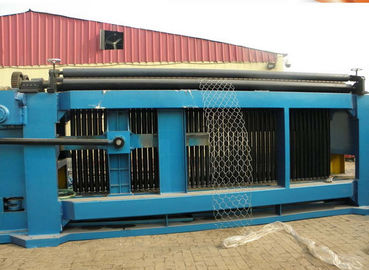

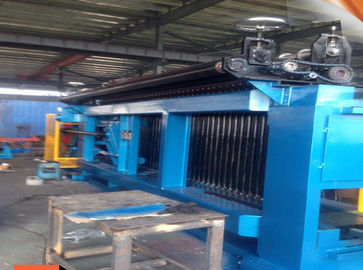

Gabion machine main machine
Wire spring winding machine
Wire tension machine
Mesh rolling machine
.Commercial terms
1. FOB price: Width of mesh is 3.3m (Button screen): 35300 USD FOB Xingang Port, China
(touch screen) : 37300 USD FOB Xingang Port, China
2. Payment: 30% T/T in advance, the balance 70% by T/T after check the machine at seller's factory.
3. Minimum order quantity: 1 set
4. Certification: ISO 9001 Certificate
5. Delivery time: 30 days from received your payment in advance.
6. Country of origin: China
7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
8. Installation: we could arrange our engineer install the machine in our factory.
IV. Contact Information
Please reply the questions as below for we give you the best price:
1. Wire diameter : From__mm to__mm.
2. Mesh size : 60X80 mm, 80 X100 mm, 100X120 mm, 120X150 mm ( you can choose it )
3. Maximum mesh width : 2300 mm, 3300mm, 4300 mm, 5500 mm.
If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.
