| Place of Origin: | CHINA |
| Brand Name: | gabion box |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 200SET |
|---|---|
| Price: | 15.5USD-16.5USD/SET |
| Packaging Details: | BULK |
| Delivery Time: | WITHIN 7 DAYS ONLY |
| Payment Terms: | L/C, T/T, MoneyGram, Western Union |
| Supply Ability: | 100000M2/MONTH |
| Material: Galvanized Iron Wire: | Hole Shape: Hexagonal | Size: 2m X 1m X 1m: | Aperture: 80*100mm |
|---|---|---|---|
| Gabion Wire Diameter: 2.0mm-4.5mm: | Gabion Size: 2mx1mx1m, 0.5mx1mx1m, 3mx1mx1m, 4mx1mx1m, | Zinc-Coated: 40-280g/Sqm: | Gabion Opening: 60X80,80X100,100X120,120X140,140X160 |
| Tensile Strength: 300-750n/Sqm: | Lacing Wire/ Tie Wire: 2.2mm,3.2mm | Diaphgram: 1m: | Specification: 2.0-4.0mm Mesh Wire, 80x100-120x150mm Opening |

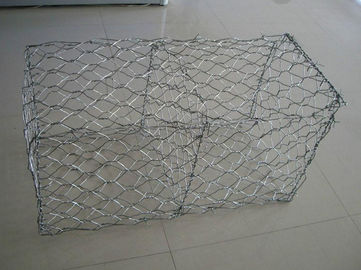

1. Galvanized gabion basket/PVC-coated gabion basket / Zinc-Al Alloy gabion basket
2. Gabions sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.
3. Body wire dia: 2.4mm 2.7mm 3.0mm3.2mm3.4mm mect
4. Selvedge wire dia: 3.0mm 3.4mm 3.7mm 4.0mm ect;
5. Coating zinc: 240g/m2 250g/m2 260g/m2 270g/m2 ect;
6. Color: Liver green grey black ect
7. Suface treatment: Galvanized, galfan (zinc95%aluminum5%), pvc coated
8. Tensile strength: 350N/mm2-550N/mm2
9. Brand: ATSM A975-97
10. Min order: 100 sets
1)Corrosion Resistant of Gabion:
Anti-corrosion, and very high resistance to natural damage and heavy weather.
2)Flexibility of Gabion:
It has very high compression strength, abrasion resistance, and can withstand large deformations without collapse.
3)Perviousness of Gabion:
It can prevent from damage caused by hydrostatic.
4)Environmental Conservation of Gabion:
Gabions filled with stones are good habitats where animals and plants live. And gabions will be at one with nature.
5)Economical:
Filling up with stones and sealing it is the only thing you need to do.
6)Convenience of Gabion:
The assembly is nothing special technically. Gabions also can be fold up and packed to transported.
Gabion Box Applications:
Construction of waterways, levee, dike, embankment.
1)Control and guide of water or flood.
2)Flood bank or guide dike.
3)Preventing of landslides and rockfall.
4)Preventing of soil erosion.
5)Help to improve soil texture.
6)Bridge protection, embankment protection, coast protection.
Packages of Gabion:
Gabion Box could be packed in bale of from 5-7 bundles and each bundle consisting of 15-30 gabion boxes(500kg-800kg).
A bale maximum height of 2m and weight from 2.5tonnes to 3.5tonnes.
Mesh size |
Number of diaphragm |
Approximate Dimensions and volumes |
tolerance |
Color code |
Wire diameter |
|||
length |
Width |
Depth |
Capacity |
|||||
80*80 80*120 80*140 100*120 120*150 |
1 |
2.0m |
1.0m |
0.5m |
1.0m |
5% |
Blue Red Green Black |
Heavily galvanized or galfan coated wire 2.0,2.2,2.4,2.7,3.0 |
1 |
2.0m |
1.0m |
1.0m |
2.0m |
||||
2 |
3.0m |
1.0m |
0.5m |
1.5m |
||||
2 |
3.0m |
1.0m |
1.0m |
3.0m |
||||
3 |
4.0m |
1.0m |
0.5m |
2.0m |
||||
3 |
4.0m |
1.0m |
1.0m |
4.0m |
||||
1 |
2.0m |
0.5m |
0.5m |
0.5m |
||||
2 |
3.0m |
0.5m |
0.5m |
0.75m |
||||
4 |
5.0m |
1.0m |
0.5m |
2.5m |
||||
4 |
5.0m |
1.0m |
1.0m |
5.0m |
||||
5 |
6.0m |
1.0m |
1.0m |
6.0m |
||||

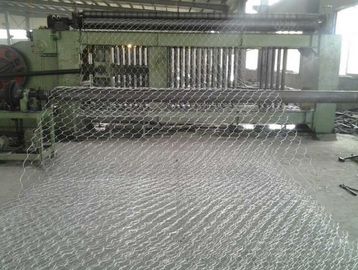

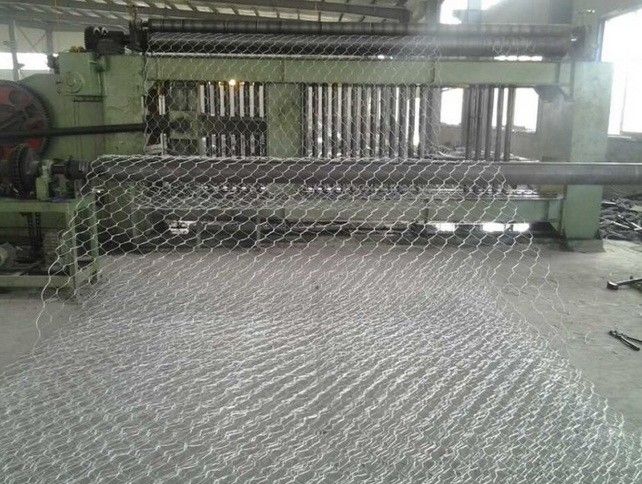

ANPING XINGMAO FACTORY SHOW:

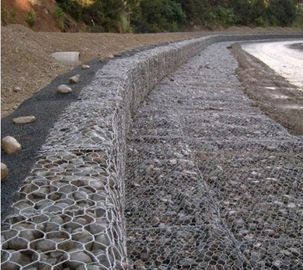

Application of Gabion box
Package and Shipping
