| Place of Origin: | china |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 11000usd-15000usd |
| Packaging Details: | bulk or according to customers request |
| Delivery Time: | within 15 days from we got the payment advance |
| Supply Ability: | 10set/month |
| Width: 2.0m-4.0m: | Wire Dia: 1.5-4.5mm | Control Type: PLC: | Mesh Size: 25*25--120*120mm |
|---|---|---|---|
| Weight: 2ton: | Outside Dimension: 4.8mx2.5mx1.5m | Speed: 80-150m2/H: | Wire Feeding System: Single Wire |
| Power: 9.75kw: | Voltage:308v.50HZ |
Anping Fully-Automatic Chain Link Fence Machine with Factory Best Price
Full automatic chain link fence machine includes:main machine,weaving machine mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.The machine is controlled by PLC system,we can set the length of the fence by PLC program.
| Wire diameter | 2mm-4mm |
| Mesh opening | 25mmx25mm-100mmx100mm |
| Netting width | 600mm-4000mm |
| Outside dimension | 5.5mx4.5mx2.5m |
| Motor power | 7.5KW |
| Voltage | 380V |
| Frequency | 50HZ |
| Production capacity | 80-120m²/h |
| Weight | 4.2 tons |

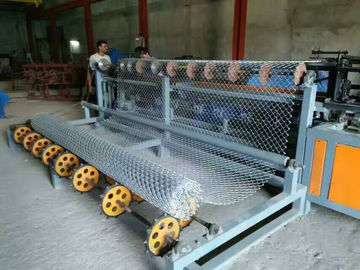

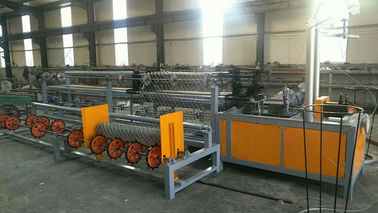

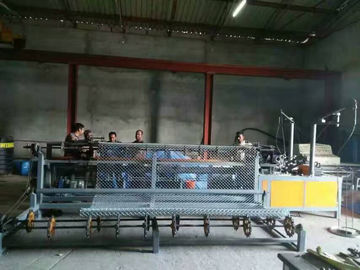

Chain link fence machine main machine
Chain link fence machine mesh weaving machine

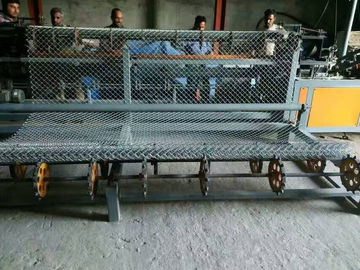

Chain link fence machine mesh rolling machine
Chain link fence machine double wire feeding system
Chain link fence machine servo motor
ully-automatic chain link fence machine performance
1.Designed for continuous working system as 24 hours.
2.Double wire input
3.Two sets mold for free
4.Long using time for mold
5.Low tolerance for mold +/-1mm
6.Wire fencing option up to 6 meters height.(the minimum could be any size)
7.Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size)
8.It works with any thickness between of wire 1.5mm and 6mm.
9.Between 25mm-100mm of mesh size wire fencing
10.Can be used with kinds of galvanized or pvc wire
Fully-automatic chain link fence machine after-sales service
Installation and commissioning:
Machine to be installed and commissioned by SEMAI technicians.
The seller will send our engineer to install the machine accordingly if the buyer need.
The buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
If you have any interest in our chain link fence machine,please feel free to contact with us.
